SP-112 Channel Wall Panel System

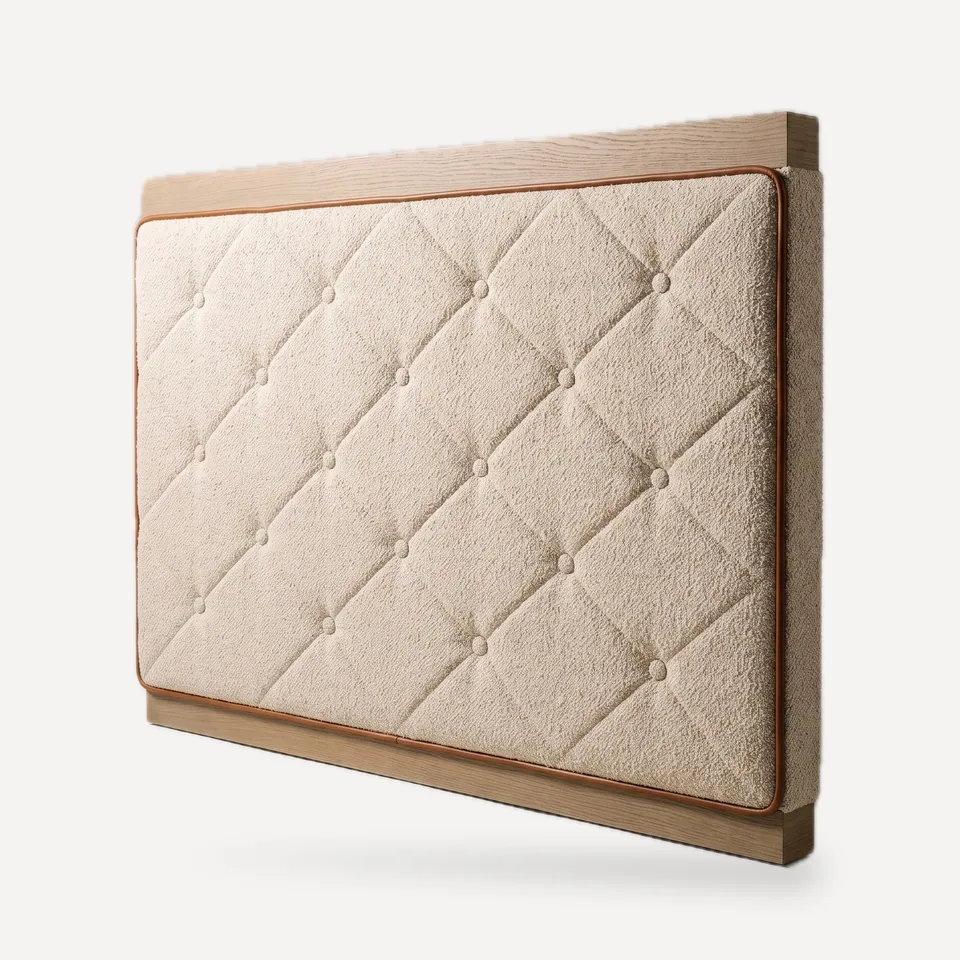

SP-112 Channel Wall Panel System view 2

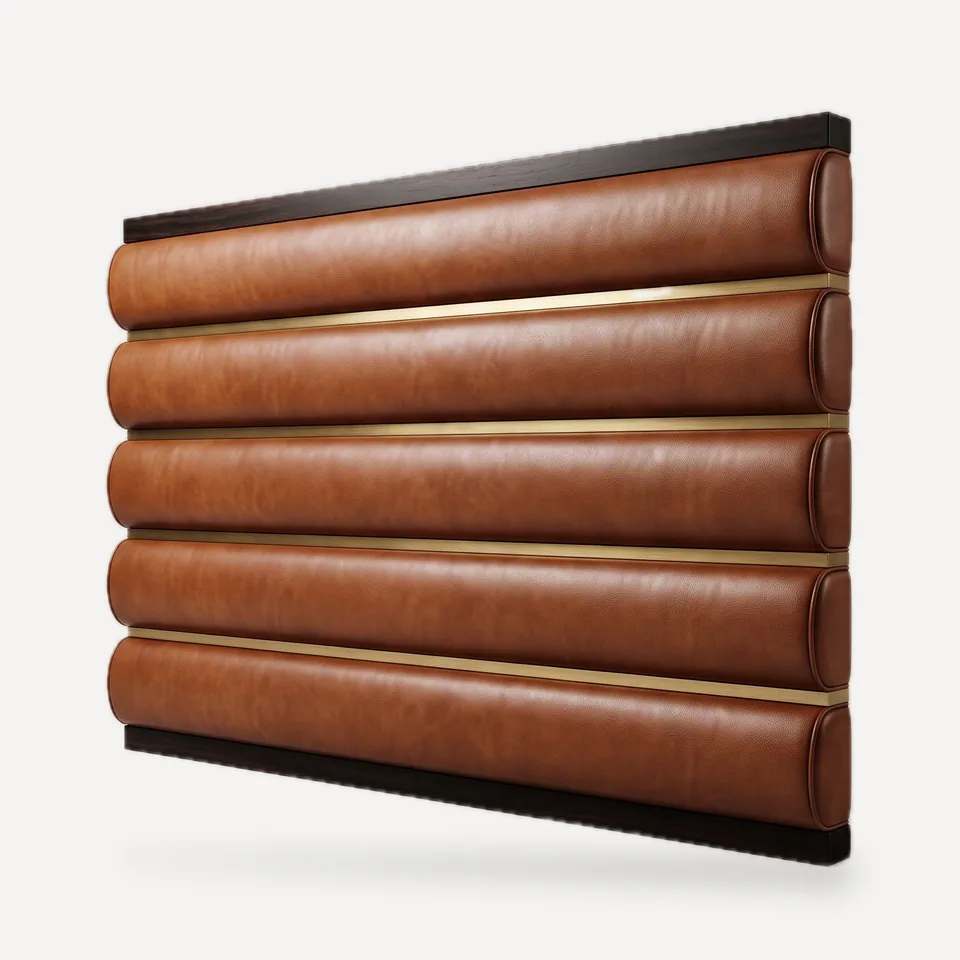

SP-112 Channel Wall Panel System view 3
Wall Banquettes and Panels

SP-112 Channel Wall Panel System

An upholstered wall panel system in vertical channel, diamond-quilt or horizontal-roll faces, with wood cap, base and optional coat hooks, matched to our banquette backs.

Ref. SPE-007

Specifications

Standard size
79 in W x 43 in H x 3 in D (200 x 110 x 8 cm); width in 12 in (30 cm) steps
Faces
Vertical channel, diamond quilt, horizontal roll
Edges
Perimeter welt; wood cap and base rail
Mounting
Concealed French cleat
Options
Metal coat hooks, inset metal strips
Upholstery
COM/COL
Customization
Panel sizes, openings and face pattern to wall elevation

Best for

  • Walls above low banquettes
  • Coat walls
  • Acoustic softening of hard rooms
Request a quote

The SP-112 lets the wall above or beside a low banquette carry the same material language as the seating. Panels are built on rigid backers, upholstered in channel, diamond-quilt or horizontal-roll faces, framed with a wood cap and base rail, and hung on concealed French cleats so they can be removed for cleaning or re-covering.

Construction. Engineered backer board with foam and upholstery wrapped and stapled to the rear; perimeter welt in a contrast or matching color; solid wood cap and base rail stained to the base finish of the banquette. Coat hooks are through-bolted to the backer.

Specifying it. Give us the wall elevation with outlets, switches and thermostats; we cut and frame openings on the drawing. Panel joints are planned on channel or seam lines. Where wall panels count as interior finish rather than furniture, your local code may treat them under interior finish flammability rules (for example, ASTM E84 classification in the US) - check with the code consultant, and we will specify materials and supply available reports accordingly.

Where it works. Above low and floating banquettes, behind bar back-to-back seating, and along coat walls in restaurants and clubs.
